Mag3x Mini MagStripe Analyzer

  • Intro
  • Features
  • Specifications
  • Ordering

Magnetic Strip Analyzer for Portable Testing

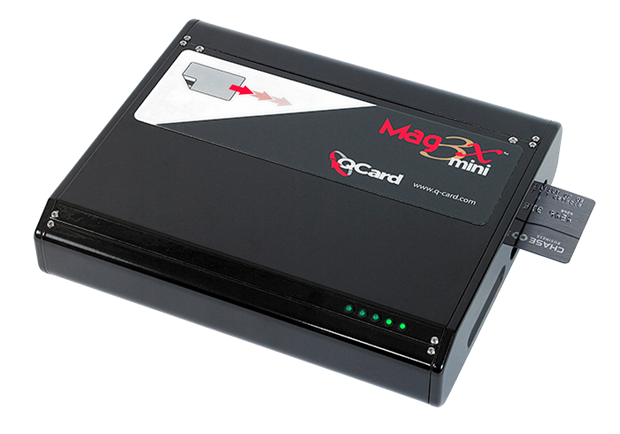

Mini-Analyzer

Q-Card’s Mag3x Mini magnetic stripe analyzer is a lightweight, industrial-grade piece of equipment for portable card testing. It is ideal for card manufacturers and capable of testing a wide range of cards, including Encoded ID1 Plastic Cards, ISO tracks 1, 2 and 3, and Embossed/Pre Embossed.

The Mag3x Mini system comes standard with insertion transport, Windows 7 compatible testing software, and user manual. Measurement repeatability for signal amplitude is ±5%.


Features & Benefits

Features

  • Tests wide range of cards:
    • Encoded ID1 Plastic Cards
    • ISO tracks 1, 2 and 3
    • Embossed / Pre Embossed
  • English and Chinese language software available
  • Windows 7 compatible
  • Simple graphical displays show pass or fail for each card
  • Save detailed data on each card for future analysis
  • 12-bit resolution
  • Fast pass/fail tool for production line

Benefits

  • Convenient, mini form factor
  • Easy-to-use reporting
  • Serviceable by end user
  • Calibrate at your own facility
  • One click testing
  • Fast 100K samples/second

Accessories & Support

  • Amplitude Calibration Card
  • Start Sentinel Calibration Card
  • TC-P HiCo Reference Card
  • Q-Card Magnetic Head Cleaning Cards

Mini-Analyzer-Test-Cards

Specifications

Electrical

  • USA: 110V/ 60HZ
  • Europe/Asia: 220V/ 50HZ

For Data Acquisitions

  • PC Computer with Windows 7 or Vista and Excel 2000 and later

Weight

  • 4.5 pounds

Dimensions

Mag3x Mini Outlines


Ordering Details

Part #

Description


906689
Mag3x Mini Magstripe Analyzer
QCA1035
Factory Service Calibration
QCA1051
DIY Calibration Kit
QCA1009
Amplitude Calibration Card
QCA1010
Start Sentinel Calibration Card
QCCA1012
TC-P HICO Reference Card
TC-CLEANING-DS
Cleaning Card
