Module Adhesion & Peel Tester

  • Intro
  • Features
  • Specifications
  • Ordering

Perform Three Tests With One Piece of Equipment

PeelTester2

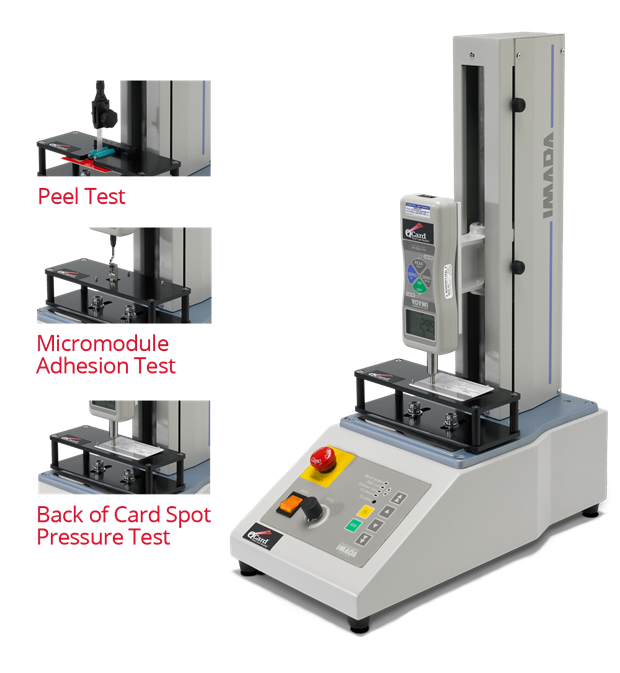

Q-Card Module Adhesion & Peel Tester allows you to perform three tests with just one piece of equipment: peel tests, micromodule adhesion tests, and back of card spot pressure tests.

Features & Benefits

Features

  • Motorized test stand
  • Digital force gauge
  • AC adapter/charger for 115VAC or 230VAC
  • Data acquisition and exporting software
  • Scoring fixture
  • Glue fixture
  • Attachments and cables

Benefits

  • Saves counter space and costs of buying multiple testing equipment
  • Ensures quality to international card standards


Module Adhesion Tester

Test package for module adhesion tester only includes a motorized test stand, digital force gauge, AC adapter/charger for 115VAC or 230VAC, data acquisition and exporting software, glue fixture and necessary attachments and cables to perform the tests below.



Module Adhesion and Peel Tester Module Adhesion and Peel Tester
Module Adhesion/IC Card
  • ANSI/INCITS 322 IC Card with Contacts Micromodule Adhesion Test
Module Adhesion/Solidity
  • MasterCard CQM Solidity: Back of Card Spot Pressure Test


Peel Tester

Module Adhesion and Peel Tester

Test package for peel tester only includes a motorized test stand, digital force gauge, AC adapter/charger for 115VAC or 230VAC, data acquisition and exporting software, scoring fixture and necessary attachments and cables to perform the tests below.

  • ISO/IEC 10373-1 Peel Strength
  • ANSI/INCITS 322 Peel Strength-90° Peel Angle
  • Mastercard CQM  Solidity/Peel Strength


Accessories & Support

Module Adhesion and Peel Tester Module Adhesion and Peel Tester
Gluing Fixture
Prepares cards for module adhesion test. One fixture is included with the module adhesion tester.
Scoring Fixture
Prepares cards for peel strength test. One fixture is included with the peel tester.


Specifications

Electrical

  • Max Load: 110 lbf
  • Speed: .4"~ 12"/minute
  • Stroke:14" (356mm)
  • Power: 115/230 VAC
  • USB / RS-232 Port Connectivity (driver included)

Environmental

  • The gauge can be used between 30-100°F (0-40°C)

For Data Acquisition

  • PC computer with Windows and Excel 2000 or later (acquisition/export software included)



Dimensions

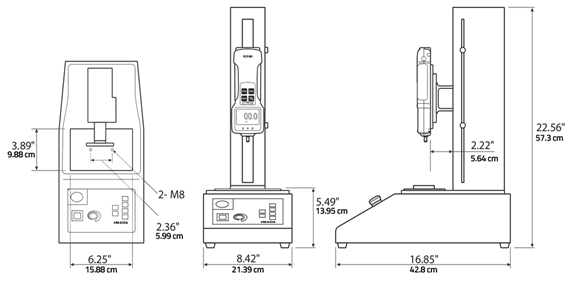

AdhesionPeelTesterDrawing


Ordering Details

Part #

Description

 906686 Combination Module Adhesion/Peel Tester (115 VAC)
 906686-220 Combination Module Adhesion/Peel Testser (230 VAC)
 906554 Module Adhesion/Back Spot Tester Only (115 VAC)
 906554-220 Module Adhesion/Back Spot Tester Only (230 VAC)
 906656 Peel Strength Tester Only (115 VAC)
 906656-220 Peel Strength Tester Only (230VAC)
 906680 Extra Gluing Fixture and Pull Ends for Micromodule Adhesion Test
 906595 Extra Scoring Fixture for Peel Strength Test
 17025 Calibration Certificate Available Upon Request for an additional charge.
