Resistance to Heat Test Fixture

  • Intro
  • Features
  • Specifications
  • Ordering

Resistance-Heat-Fixture

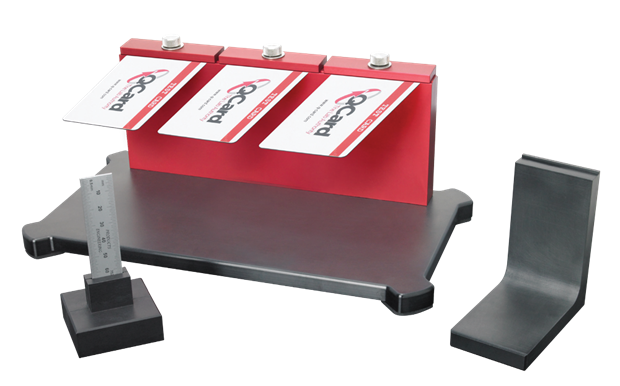

Q-Card’s resistance to heat test fixture allows testing of three cards at one time. A card’s ability to resist heat is determined by exposing the cards to certain climatic conditions over time, then measuring the mechanical deformation caused by the influence of gravity.

Q-Card’s resistance to heat fixture features splayed feet and aggressive no-slip rubber pads for optimum stability. It is manufactured of aerospace-grade aluminum alloy with a hard anodized, scratch-resistant, durable finish to provide years of rigorous testing and trouble-free service.

The test fixture includes the card clamping stand, a card stop gauge to provide the precise cantilever dimension and a movable stainless steel scale for precision accuracy.



Features & Benefits

Features

  • Tough, aerospace-grade aluminum alloy card placement fixture
  • Stable base
  • Rubber non-slip feet
  • Card clamping system
  • Weight
  • Accurate, high-quality scale

Benefits

  • Tests three cards at one time
  • Easy to use
  • Simple weight application and release
  • Ensures cards meet ISO, CQM, and ANSI standards


Details

Mastercard CQM

  • 10.1.5 R-L3-15-2 Resistance to Heat
  • 13.2.1.21 TM-411 Resistance to Heat

Mastercard CQM

  • 5.1.10 Heat Resistance
  • 10.3.10 Heat Resistance
  • 16.1.10 Heat Resistance
  • Test Method Reference P-10

ISO/IEC

  • ISO/IEC 7810 Resistance to Heat
  • ISO/IEC 10373-1 Resistance to Heat


Specifications

  • Weight: 6 pounds

Dimensions

ResistanceToHeat


Ordering Details

Part #

Description

906707

Resistant to Heat
