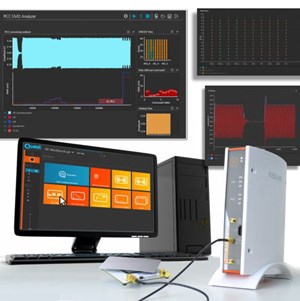

ProxiLAB

Master State of the Art Instumentation in a Single Click

KEOLABS' Quest line of testing tools delivers state of the art characterization capabilities with unprecedented ease-of-use through the new Quest software environment.

Quest provides characterization tests as preconfigured scenarios. These scenarios control the tester's programmable features to enable single-click access to contactless tests such as waveform analysis and performance profiling.

The scenario's configuration, description, scripts, traces and results are all stored in a workbook file that can be easily shared with others using the free Quest software.

Contactless Characterization & Testing

Explore, prototype and characterize 13.56 MHz contactless technologies in smart cards, reader & NFC enabled objects.

Programmable Features

Redesigned architecture delivers new features to support device testing and characterization including:

• Accurate Arbitrary Waveform Generation (AWG)
• Advanced I/Q demodulation
• 20 dBm Vectorial Network Analysis (VNA)
• Pre-equalizer filtering

Emulates card/reader signals at analog and digital levels with full control of all signal parameters to enable:

• Protocol conformance verification
• Characterization
• Card/ Reader waveform analysis
• Card EMD profiling
• True-waveform signal replay
• Resonance frequency / Q factor
• and more...

Supported Protocols

• ISO/IEC 14443 (A/B/B1), Mifare™
• VHBR (ASK, PSK to 27 Mbs)
• ISO/IEC 15693, 18000-3
• Felica™ (JISX 6319)
• NFC-IP1, -IP2 (ISO/IEC 18092, ECMA 340)
