Relative Height / Surface Profile of Contacts Tester
![Relative Height Fixture](/data/uploads/media/image/06212021103749_06212021103749_Q-Card-Relative-Height-Surface-Profile-of-Contacts-Fixture2.jpg?w=620)

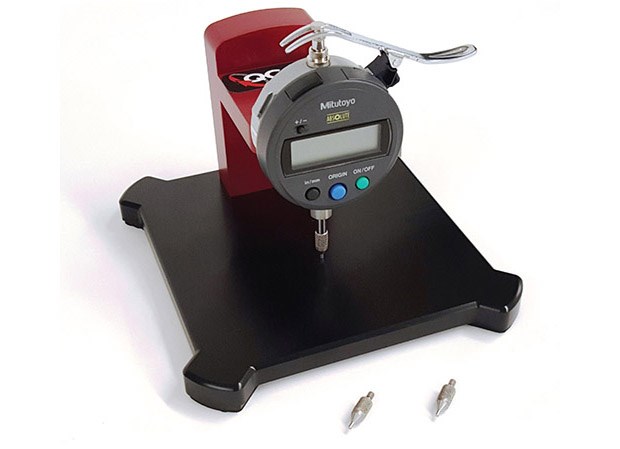

Q-Card’s Relative Height / Surface Profile of Contacts Fixture is designed to determine the difference in thickness between the ICC contacts and its adjacent surfaces to verify compliance to card industry testing per Mastercard® CQM and ISO standards.
The fixture is manufactured of aerospace-grade aluminum alloy with a hard anodized, scratch-resistant, durable finish to provide years of rigorous testing and trouble-free service. It also features splayed feet and aggressive no-slip rubber pads for stability. The fixture includes a Mitutoyo digital gauge for superior accuracy and two stainless steel tips: a flat tip for CQM tests and a radius tip for ISO tests.
Q-Card’s Relative Height / Surface Profile of Contacts Fixture is designed to test cards for the following standards:
|
Specifications
|

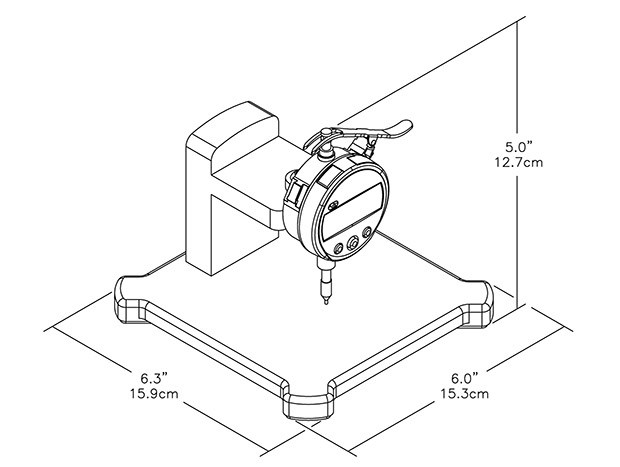

Dimensions
![Relative Height Fixture](/data/uploads/media/image/06212021104103_06212021104103_Q-Card-Relative-Height-Surface-Profile-of-Contacts-Fixture-Dimensions.jpg?w=620)
Ordering Details
Part #
|
Description |
|
907021 |
Relative Height Surface Profile of Contacts Tester |
Order Online and Pricing |
