Card Bending Stiffness Tester

  • Intro
  • Features
  • Specifications
  • Ordering

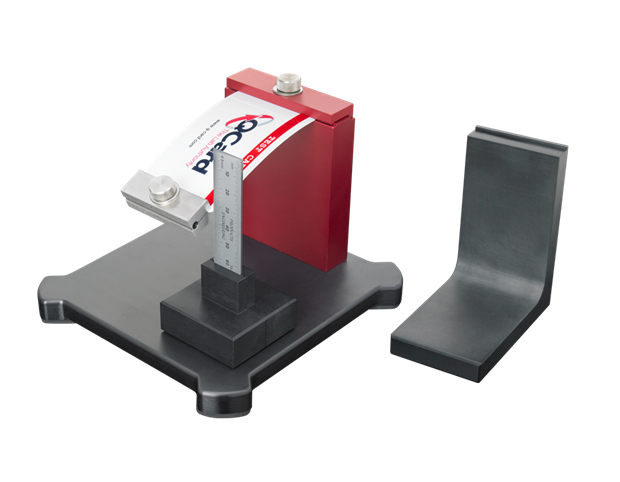

Stiffness-Test-Fixture

Q-Card’s bending stiffness fixture features splayed feet and aggressive no-slip rubber pads for stability. It is manufactured of aerospace-grade aluminum alloy with a hard anodized, scratch-resistant, durable finish to provide years of rigorous testing and trouble-free service.

The test fixture includes the card clamping stand; a card stop gauge to provide the precise cantilever dimension; a 0.7 N stainless steel weight; and a movable stainless steel scale for precision accuracy.


Details

Q-Card’s bending stiffness fixture is designed to perform the bending stiffness test according to the following standards:

Mastercard CQM V.2.03

  • 10.1.1 R-L3-14-1 Bending Stiffness
  • 13.2.1.17 TM-408 Bending Stiffness

Mastercard CQM V.1.9D

  • 5.1.7 Bending Stiffness
  • 6.1.4 Bending Stiffness
  • 10.3.7 Bending Stiffness
  • 16.1.7 Bending Stiffness
  • Test Method Reference P-07

ISO/IEC

  • ISO 7810 Bending Stiffness
  • ISO 10373-1 Bending Stiffness

Specifications

  • Weight: 3.25 pounds

Dimensions

BendingStiffnessTesterDrawing

Ordering Details

Part #

Description

 906698 Bending Stiffness Test Fixture
