Module Adhesion, Embossed Character and Peel Tester

  • Intro
  • Features
  • Accessories
  • Ordering

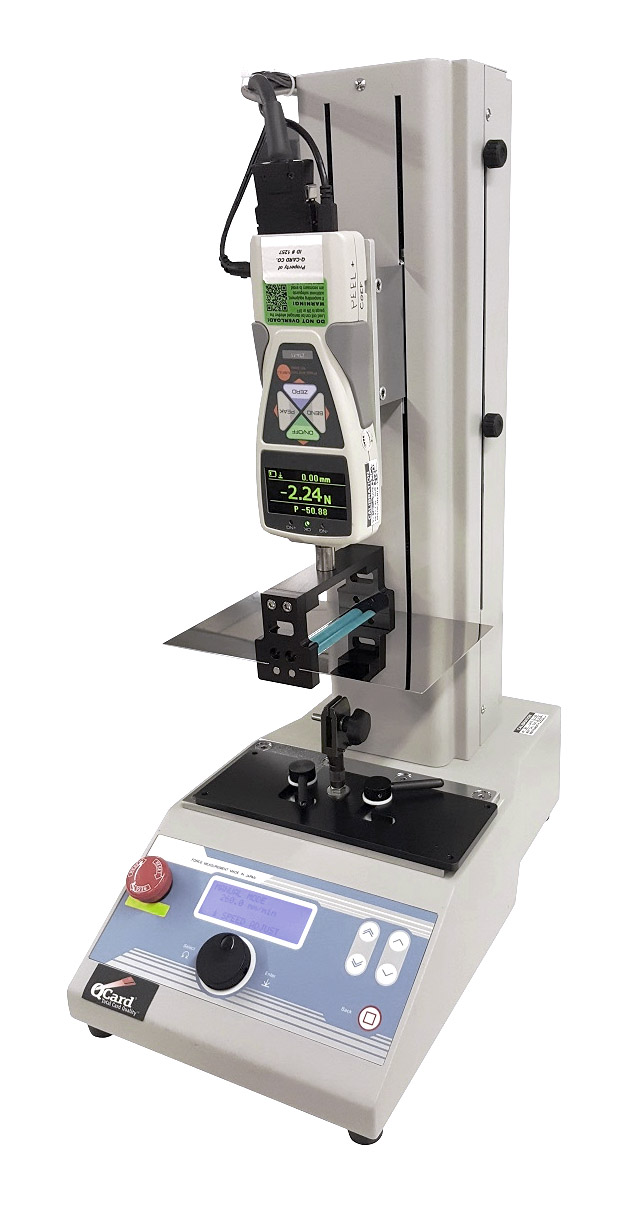

Perform Four Tests with One Test Stand

Image of Q-Card peel test closeup

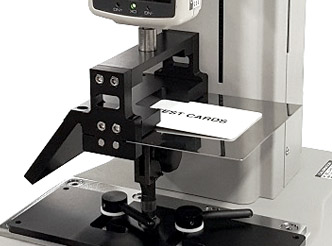

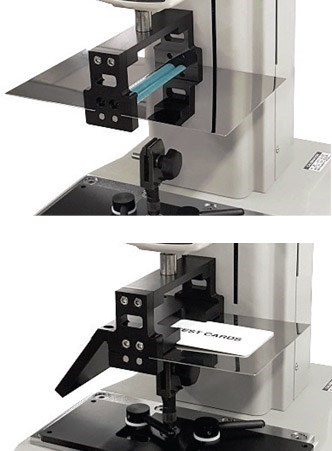

Peel Testing

Module Adhesion, Embossed Character and Peel Tester

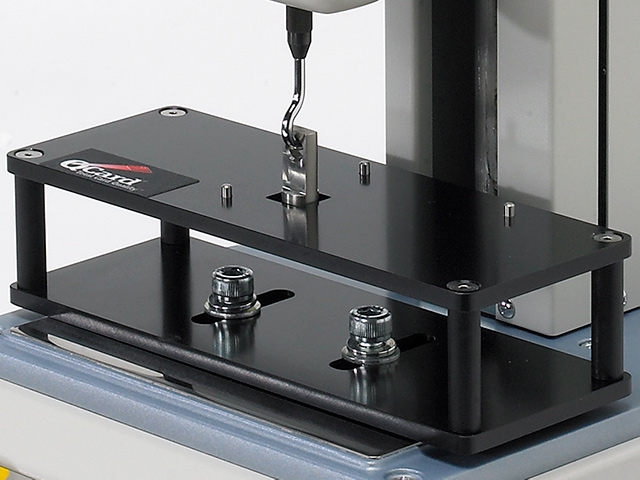

Micromodule Adhesion

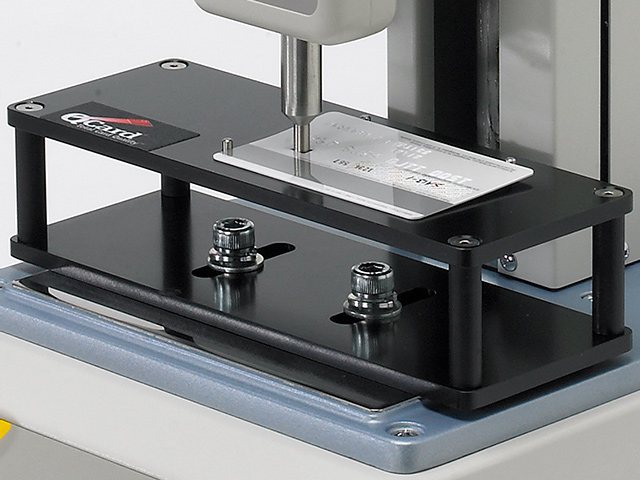

Closeup of Q-Card back of card spot pressure test

Spot Pressure

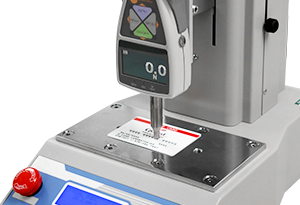

Closeup of Q-Card peel tester embossed character test

Embossed Character

This test platform can be ordered in a variety of configurations.

Test package for performing all four tests includes a motorized test stand, digital force gauge, AC adapter/charger for 115VAC or 230VAC, data acquisition and exporting software, scoring fixture, glue fixture, ISO 9001 calibration, and the necessary attachments and cables to perform the above tests.

Configurations are also available for individual tests.

Module Adhesion Testing

Test package for module adhesion tester only includes a motorized test stand with integrated digital force gauge, AC adapter/ charger for 115VAC or 230VAC, data acquisition and exporting software, ISO 9001 certification, module test fixture and necessary attachments and cables to perform the tests below.

Module Adhesion and Peel Tester Module Adhesion and Peel Tester
Micromodule Adhesion (pull test)
  • ANSI/INCITS 322
Back of Card Spot Pressure (push test)
  • MasterCard CQM


Peel Testing

Peel Testing

Test package for peel tester includes the motorized test stand with integrated digital force gauge, AC adapter/charger for 115VAC or 220VAC, data acquisition and exporting software, scoring fixture, ISO peel fixture, CQM angled fixture, stabilizing plates with rails, stabilizing plates for use with double-faced tape, base plate for thin film grip, ISO 9001 certification and the necessary cabling to perform the tests below.

Peel Strength

  • ISO/IEC 7810
  • ISO/IEC 10373-1
  • ANSI/INCITS 322
  • Mastercard CQM


Embossed Character Testing

Embossed Character Testing

Test package for embossed character tester only includes a motorized test stand with integrated digital force gauge, AC adapter/charger for 115VAC or 230VAC, data acquisition and exporting software, ISO 9001 calibration and the necessary attachments and cables to perform the tests below.

Embossed Character Retention

  • ISO/IEC 7810
  • ISO/IEC 10373-1
  • ANSI/INCITS 322
  • Mastercard CQM


Q-Card's motorized test stand with integrated digital force gauge allows for flexible, highly reliable testing and robust data capture. Test package for performing all four tests includes a motorized test stand, digital force gauge, AC adapter/charger for 115VAC or 230VAC, data acquisition and exporting software, scoring fixture, glue fixture, ISO 9001 calibration, and the necessary attachments and cables to perform the listed tests.

Tester Features & Benefits

Features

  • Motorized test stand
  • Digital force gauge
  • AC adapter/charger for 115VAC or 230VAC
  • Data acquisition and exporting software
  • Scoring fixture
  • Glue fixture
  • Attachments and cables

Benefits

  • Saves counter space and costs of buying multiple testing equipment
  • Ensures quality to international card standards
  • Data Acquisition Software designed to capture up to 2,000 data per second
  • Can be ordered in a variety of configurations


Additional Accessories

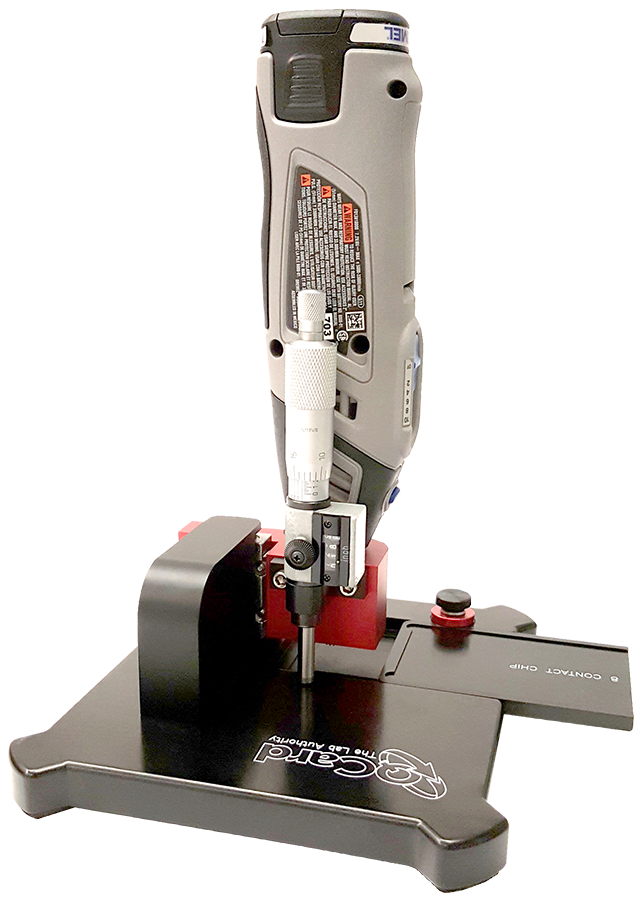

Image of q-card peel tester router tool

Router Tool

Router Tool for Back of Card Spot Pressure Testing (for embedded chip location)

Gluing Fixture Scoring Fixture

Gluing Fixture

Prepares cards for module adhesion test (note: one fixture is included with module adhesion tester).

Scoring Fixture

Standard Horizontal and Vertical scoring fixtures are available for peel strength test (note: standard horizontal fixture is included with peel tester).



Ordering Details

 Part No.

 Description

907018-110 Peel Tester (110 VAC)
907018-220 Peel Tester (220 VAC)
907026-110 Peel/Module Adhesion/Back of Card Spot (110 VAC)
907026-220 Peel/Module Adhesion/Back of Card Spot (220 VAC)
907017-110 Peel/Module Adhesion/Embossed Character Retention (110 VAC)
907017-220 Peel/Module Adhesion/Embossed Character Retention (220 VAC)
906923-110 Module Adhesion/Back of Card Spot Pressure (110 VAC)
906923-220 Module Adhesion/Back of Card Spot Pressure (220 VAC)
906926-110 Embossed Character (110 VAC)
906926-220 Embossed Character (220 VAC)


Accessories

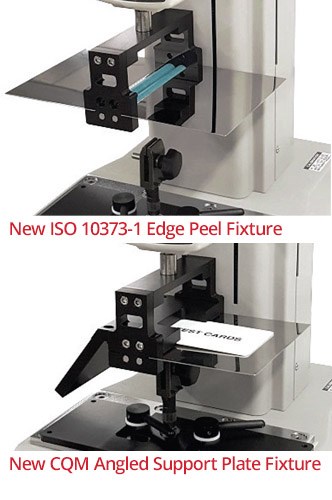

906987 ISO Edge Peel Test Fixture Upgrade with CQM Angled Bracket
906987-120 Double Sided Tape
906987-130 Filament Tape
906595 Card Scoring Fixture for Peel Strength Test
906820 Vertical Card Scoring Fixture for CQM Peel Strength Test
906680 Gluing Fixture and Pull Ends for Micromodule Adhesion Test
906844 Router Tool for Back of Card Spot (110 VAC)
906844-220 Router Tool for Back of Card Spot (220 VAC)

Dimensions

Q-Card Peel Tester Diagram

The Equipment The Experts Use

Test tools for quality labs, production and R&D.

Use the equipment the experts use. Q-Card has been designing, manufacturing and supporting highly accurate test equipment for laboratory, R&D and production environments since 1988. Our offering of test equipment and test fixtures are used in our own laboratory, so you can be confident that we’ve designed them for durability, reliability and accuracy.

Our complete line of test equipment includes peel testers, bend and torsion, magnetic stripe analyzers, three wheel testers and a variety of ISO, ANSI and Mastercard CQM test fixtures. Q-Card is also an authorized reseller for KEOLABS test tools for EMV and NFC, including contactless spy, PICC and PCD emulation, automation tools and an EMV approved contactless test bench.
