Tests A axis, B axis and Torsion Simultaneously

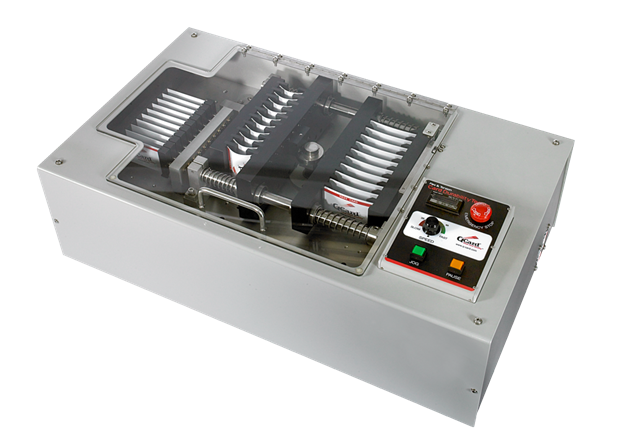

Bend-Torsion-Tester

Q-Card’s bend and torsion card durability tester is designed to assess the resistance of plastic magnetic stripe and chip cards. Heavy duty construction and simultaneous A axis, B axis and torsion testing makes this equipment ideal for use in a production setting. You can program the test parameters to your specific requirements, including test speed and count. Additionally, our tester has built-in safety features such as an emergency stop and a hood safety switch. Our equipment is factory tested and certified to the specified card deflection dimensions for each standard.

Features & Benefits

Features

ISO and CQM Testing

  • Tests to ISO 10373 Dynamic Bending Stress
  • ISO 10373.1 Dynamic Torsional Stress
  • Tests to MasterCard CQM Dynamic Bending Stress
  • Tests to MasterCard CQM  Dynamic Torsional Stress

ANSI Testing

  • Tests to ANSI 322 Card Flexure

Benefits

  • Tests up to 6 times faster than competing models.
  • Tests plastic ISO standard cards 0.25mm to 1.2mm thick.
  • Optional capability to test other style cards.
  • Super clear, scratch resistant (Lexan) safety hood - pauses the jaws when hood opens.
  • Heavy duty motor and construction for production testing.
  • Includes a counter and controls to run tests for specific numbers of cycles - stopping point 300,000 cycles maximum.
  • Easy-to-use control panel allows users to set speed, counters, load and unload positions, jogging for easy card access and many more functions.

Bend & Torsion Card Testing

Dynamic Bend/Flexure Test

The Q-Card Bend & Torsion Card Tester is compliant with ISO/IEC 10373-1, CQM or ANSI INCITS 322standards and is factory tested and certified to the specified card deflection dimensions for each standard. Each set of jaws holds the required number of cards per the ISO, CQM or ANSI standards.

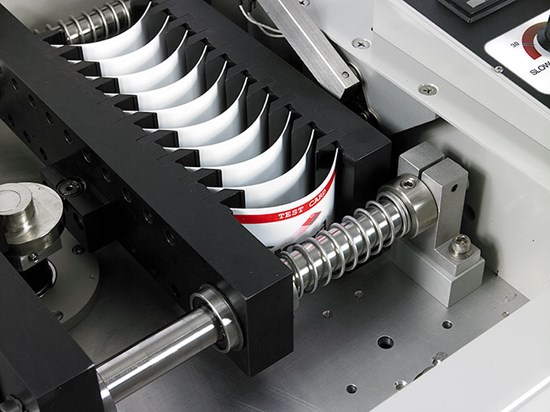

A axis capacity is ten cards

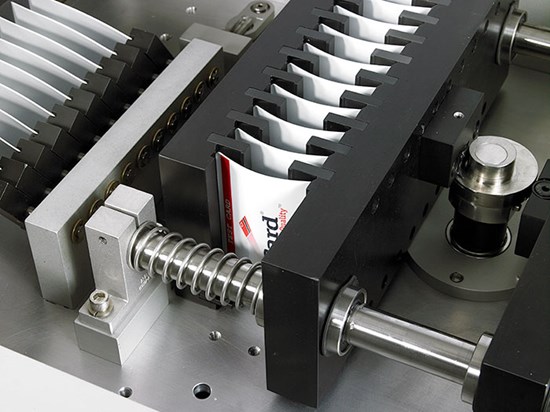

B axis capacity is ten cards

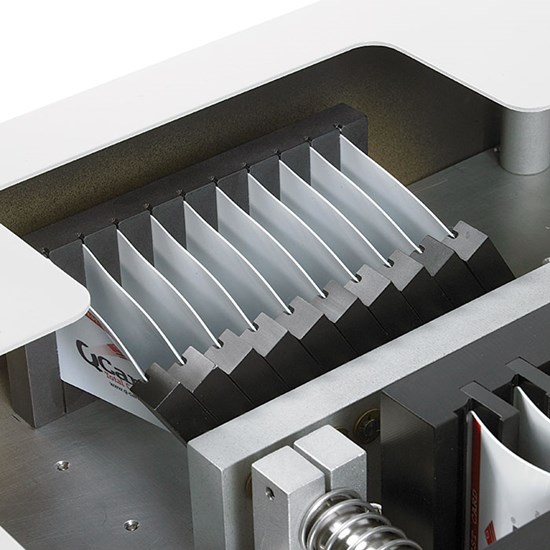

Card Torsion Test

New Image

Torsion capacity is ten cards

Specifications

Electrical

  • USA: 110V / 60HZ / 80 Watt Max
  • Europe/Asia: 220V / 50Hz / 80 Watt Max

Weight

  • 66 pounds

Flex Cycle Speed range

  • Adjustable 30 to 60 cycles per minute

Safety Protection

  • Clear hinged window with open position motor stop switch
  • Emergency Stop Button for immediate cancellation of operation

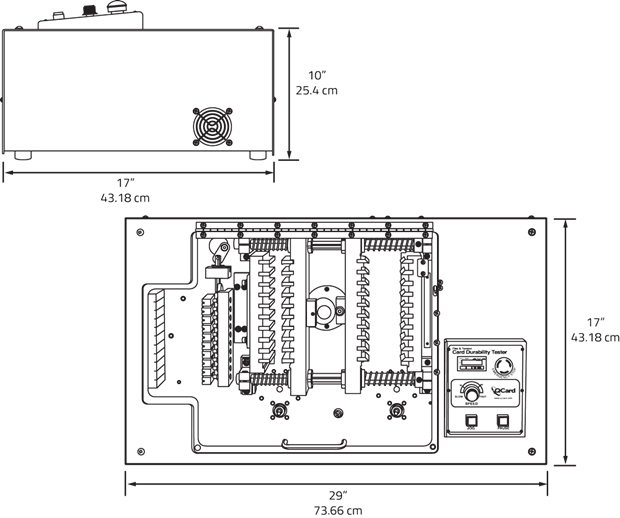

Dimensions/ Drawings

Bend-Torsion-Drawing

Ordering Details

Part #

Description

905951
ISO/CQM Version (110V) Dynamic Bend and Torsion Card Durability Tester
905952
ISO/CQM Version (220V) Dynamic Bend and Torsion Card Durability Tester
906303 ANSI Version (110V) Dynamic Bend and Torsion Card Durability Tester
906304
ANSI Version (220V) Dynamic Bend and Torsion Card Durability Tester
905951-CAL
ISO/CQM Version (110V) Factory Calibration Service
905952-CAL
ISO/CQM Version (220V) Factory Calibration Service
906303-CAL
ANSI Version (110V) Factory Calibration Service
906304-CAL
ANSI Version (220V) Factory Calibration Service
