Card Dimension Gauge Fixture

  • Intro
  • Features
  • Specifications
  • Ordering

Measure 3 Card Dimensions with 1 Fixture

GaugesBluetooth

Q-Card’s card dimension gauge quickly and easily measures the height, width and thickness with just one piece of equipment. In addition, Bluetooth capable version enables easy and fast data capture to your PC spreadsheet. The fixture is manufactured of aerospace-grade aluminum alloy with a hard anodized, scratch-resistant, durable finish to provide years of rigorous testing and trouble-free service.

It also features splayed feet and aggressive no-slip rubber pads for stability. Each fixture includes three digital gauges, a stainless steel calibration block and a hard-side carrying storage case.

Features & Benefits

Features

  • Test 3 dimensions with 1 fixture
  • Aerospace grade construction
  • Anti-slip pads
  • Options for digital and Bluetooth gauges and data acquisition

Benefits

  • Perform three measurements at once
  • Easy to use
  • Durable, long-lasting design
  • Ensures cards meet ISO, CQM, and ANSI standards

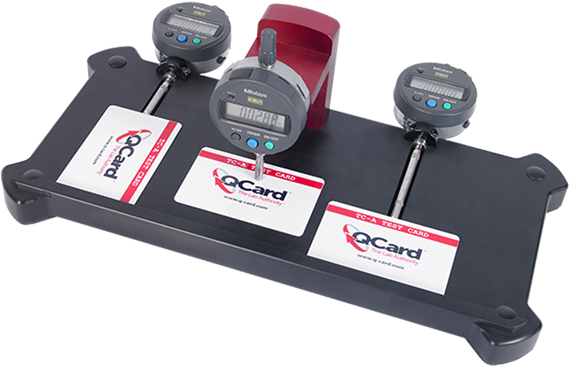

Basic Fixture

BasicFixture

  • 3 Mitutoyo digital gauges to read height, width and thickness

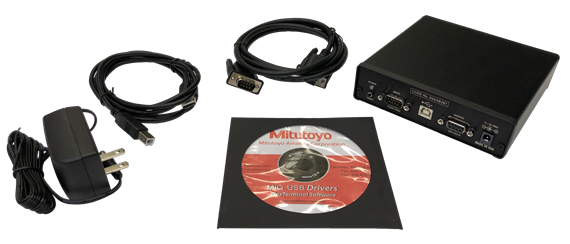

Basic Fixture with Data Acquisition

BasicFixture

  • 3 Mitutoyo digital gauges to read height, width and thickness, cables, software, automatic data population to Microsoft Excel

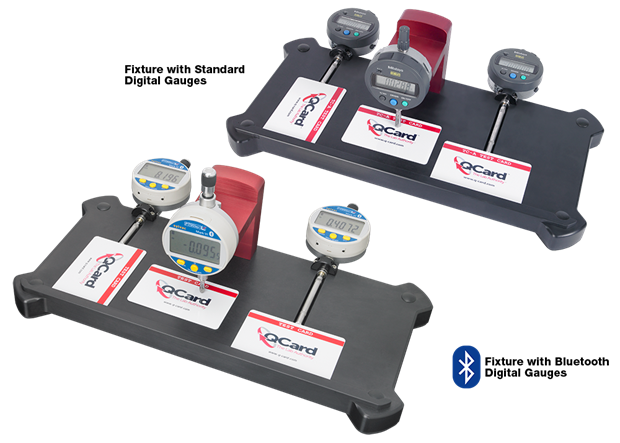

Bluetooth LE Fixture

BluetoothGauge

  • 3 Mitutoyo digital gauges to read height, width and thickness, wireless data acquisition, software, automatic data population to Microsoft Excel
  • Tough, aerospace-grade aluminum alloy card placement fixture
  • Stable base
  • Rubber non-slip feet

Details

Q-Card’s card dimension fixture can be used to check card dimensions according to the following standards:


ISO/IEC

  • ISO 7810 Dimension of Card
  • ISO 10373-1 Dimension of Cards

Mastercard CQM

  • 9.1.2 R-P3-10-1 Width and Height
  • 13.2.1.12 TM-403 Width and Height
  • 9.1.3 R-P3-10-2 Thickness Outside Contacts, Embossed Areas and Add-on Areas
  • 13.2.1.13 TM-404 Card Thickness Outside Contacts, Embossed Areas and Add-on Areas
  • 9.1.4 R-P3-10-3 Thickness Within Add-on Areas
  • 13.2.1.14 TM-405 Thickness Within Add-on Areas

Specifications

  • Weight: 15 pounds (includes carrying case)

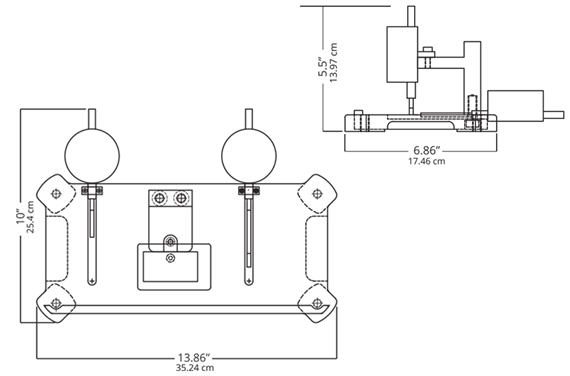

Dimensions/ Drawings

Dimension-Fixture-Gauge-Drawing

Ordering Details

Part #

Description

 906758

Card Dimension Fixture with Bluetooth Digital Gauges, Includes IP67 Rating (dust and waterproof) and lifetime warranty
 906699 Card Dimension Fixture with Standard Digital Gauges, includes one year warranty
 906759 Optional Data Acquisition Cables and Software for Standard fixture (906699)

**Fixture includes stainless steel height/width calibration block and heavy-duty carrying/storage case**
