Sandpaper and Soft Eraser Rub Durability Fixture

  • Intro
  • Features
  • Specifications
  • Ordering

Sandpaper Eraser

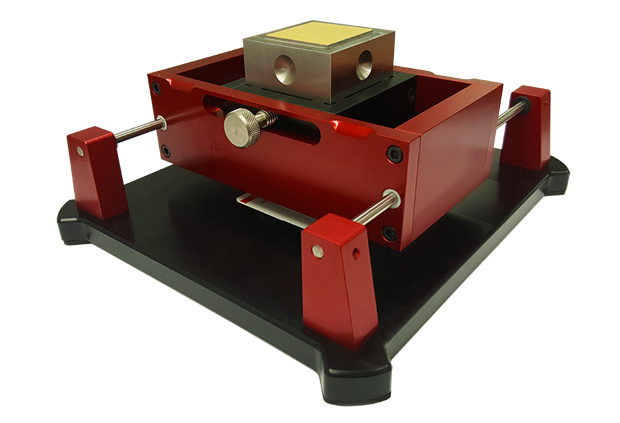

Q-Card's Sandpaper and Soft Eraser Rub Durability fixture is designed to determine the resistance of various card printing methods to abrasion caused by rough surfaces. The fixture holds a standard ID-1 size card in a cavity and uses a calibrated weight affixed with abrasive materials (sandpaper and soft eraser) to perform the tests. The calibrated weight affixed with the abrasives is held in a transport. The weight is then moved across the card surface by pushing and pulling the weight transport back and forth across the card surface.

The fixture is manufactured of a durable aircraft grade aluminum with a hard-anodized coating for durability. It has splayed feet and aggressive non-slip rubber feet for stability. The calibrated weight is made of stainless steel to provide years of rigorous testing and trouble-free service.

The fixture has two locking thumb screws: one is to position the abrasives over the card area to be tested; the second holds the calibrated weight up and out of the way when placing the new cards in the cavity to be tested.

The fixture is designed to perform both the sandpaper and soft eraser rub tests according to the following standards:

MasterCard CQM

  • Durability of Surface Printing — Sandpaper Rub
  • Durability of Surface Printing — Soft Eraser


  • Weight: 9 lbs.


Sandpaper Eraser Drawing

Ordering Details

Part #


 906701 Sandpaper and Soft Eraser Rub Durability Fixture Order Online and Pricing
 906960 Sandpaper and Soft Eraser Consumables kit. Includes 20 sandpaper pads, 2 eraser pads, 5 foam pads, and 2 card hold down clamping screws. Order Online and Pricing
