Card Wrapping Fixture

  • Intro
  • Features
  • Specifications
  • Ordering

Two Radius Tests for Module Resistance

Card Wrapping Fixture

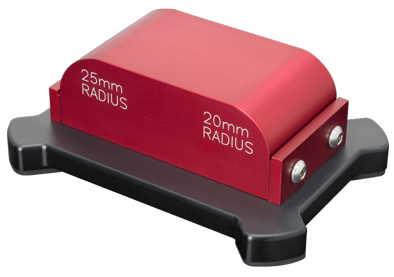

Q-Card’s wrapping fixture is designed to apply bending stress to a module embedded within a card’s body in order to check gluing resistance. The test fixture has the capability to perform at two bending radii: 20mm and 25mm.

The wrapping fixture features a horizontal design with splayed feet and aggressive no-slip rubber pads for stability. It is manufactured of aerospace-grade aluminum alloy with a hard anodized, scratch-resistant, durable finish to provide years of rigorous testing and trouble-free service.


Features & Benefits

Features

  • 25 mm and 20 mm test areas
  • Tough, aerospace-grade aluminum alloy card placement fixture
  • Stable base
  • Rubber non-slip feet

Benefits

  • Easy to use
  • Durable, long-lasting design
  • Ensures cards meet CQM standards

Details

Q-Card’s Card Wrapping Fixture is designed to perform this test according to the following standards:

Mastercard CQM


  • 7.1.1 R-L2-12 Mechanical Robustness (part of a sequential test)
  • 11.1.1 R-L0-01 Card Service Life (part of a sequential test)
  • 11.1.3 R-L3-14-8 Wrapping Test Robustness
  • 13.2.1.32 TM-422 Mechanical Reliability: Wrapping Test

Mastercard CQM


  • 6.1.11 Mechanical Reliability
  • 10.3.23 Mechanical Reliability: Wrapping Test
  • 12.1.5.5 Conformity to Wrapping Test
  • 16.1.18.3 Wrapping Test
  • Test Method Reference P-23

Specifications

  • Weight: 2.5 pounds

Dimensions

Wrapping-Fixture

Ordering Details

Part #

Description

906710

Wrapping Test Fixture
