Module Adhesion, Embossed Character and Peel Tester - Digital Force Gauge Features

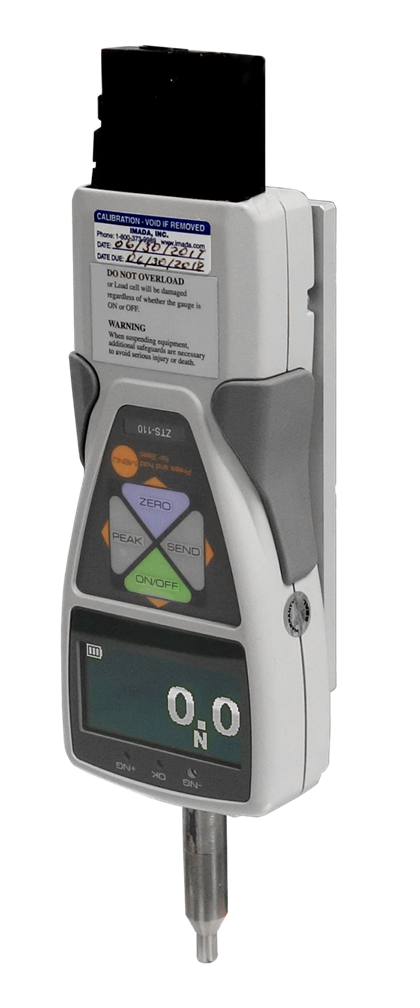

Digital Force Gauge

The digital force gauge features an intuitive user interface with easy-to-use menus. Users can select units, reverse the display, set high/low set points, and set all other functions using plain language menus. The vibrant luminescent display shows force value, unit, and peak, and can be configured with additional user selectable data including memory data, +NG count, high/low set points, first and second peaks, and more.

Color-coded LED indicators alert the user to go/no-go conditions. Orange lights for less than low set point, green lights between high and low, and red for over the high. Process and transmit 2,000 actual data per second, not just the peak from a high sampling rate.

The gauge, through its USB connection allows users to download data from the gauge memory or capture a continuous stream of data. Users can zero the gauge or capture data while at the computer. All gauge programming can be set and saved from the software. Data Acquisition Software is designed to capture up to 2,000 data per second. No competitors’ gauges come close to this speed! See testing software section for complete details.

Force Gauge Standard Features

  • Accuracy: ±0.2% F.S., ±1 LSD
  • Selectable Units: lbf(ozf), kgf(gf) or Newtons
  • Luminescent display is highly visible in dark locations
  • Multi-language program menus: English, Spanish, French, Chinese,
    German, Italian, Korean, Japanese
  • Processes and transmits 2,000 data/sec.
  • Color-coded LED indicators and output signal for go/no-go testing
  • Ergonomic design with non-slip grips, heavy duty metal
  • Capacity up to 1,100 lbs (push/pull)
  • Overload capacity 200% F.S.
  • USB (virtual COM port), RS-232C, Digimatic and Analog outputs
  • 1,000 data memory for recall or download
  • External switch display hold and clear
  • Internal Ni-MH batteries or AC adapter
  • Real time and peak mode (selectable)
  • Overload alarm and output signal
