Testing Software Features
Testing Software Capabilities
Q-Card’s Force Recorder data analysis software provides for a robust interface with the integrated force gauge. The software enables users to program, save or import saved gauge programming directly from the software.
The Force Recorder software captures and processes 2,000 data per second (not just the peak) and generates force versus time profile graphs with statistics. Users can zoom into any part of the graph to see individual data points at intervals of 0.5 mS. Software includes mouse over data points to display the force value.
Further analysis can be done on the entire range or by selecting part of the graph to detect the first peak or generate statistics within that time interval. Compare and align multiple graphs. Save graphs or export data to CSV format.
Software Features at a Glance
- Data transfer rate: 2000 data/sec
- Maximum Data Points: 7.2 million
- Program Gauge Functions
- Graph Overlay Function
- Trigger Function
- Point Marking
- Border Line Function
- Graph Editing
- Graph Navigation
- Statistics Output
- Comment Function
- Note Function
Software Platform Requirements
- OS: Windows XP / Vista / 7 / 8
- NOTE: Windows 10 currently not supported
- CPU: Pentium 4 (1GHz or higher) or later
- RAM: 2GB or greater
- Hard Disk: 10GB minimum (dependent on test variables
and duration) - Display Resolution: 1024 x 768 or greater
- Port: USB 1.1 / 2.0 (Not compatible with USB 3.0)
- Cable: Standard USB A to Mini-B cable (comes with gauge)
- Windows 7 includes .NET Framework 4.0

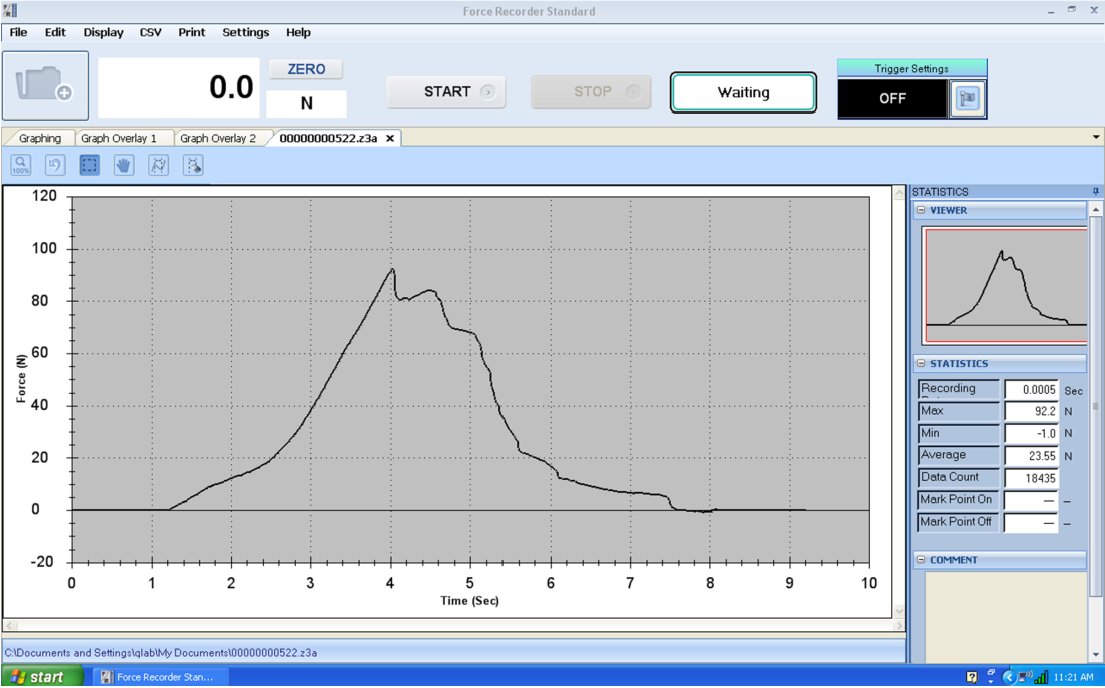

Sample Peel Test Graph

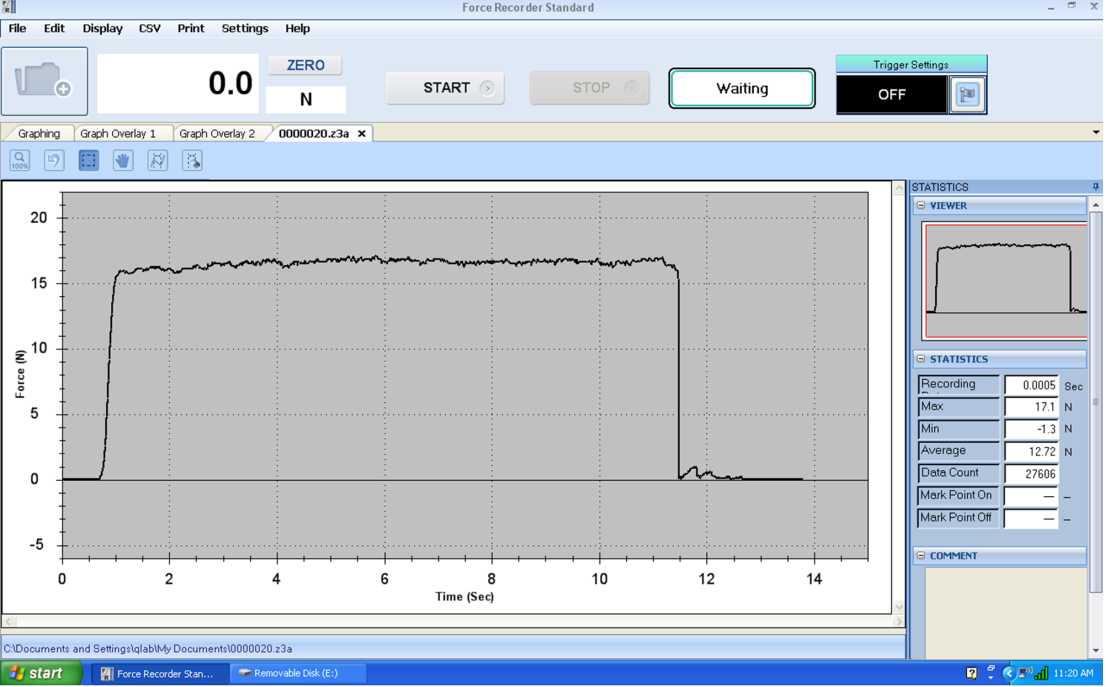

Sample Module Adhesion Graph

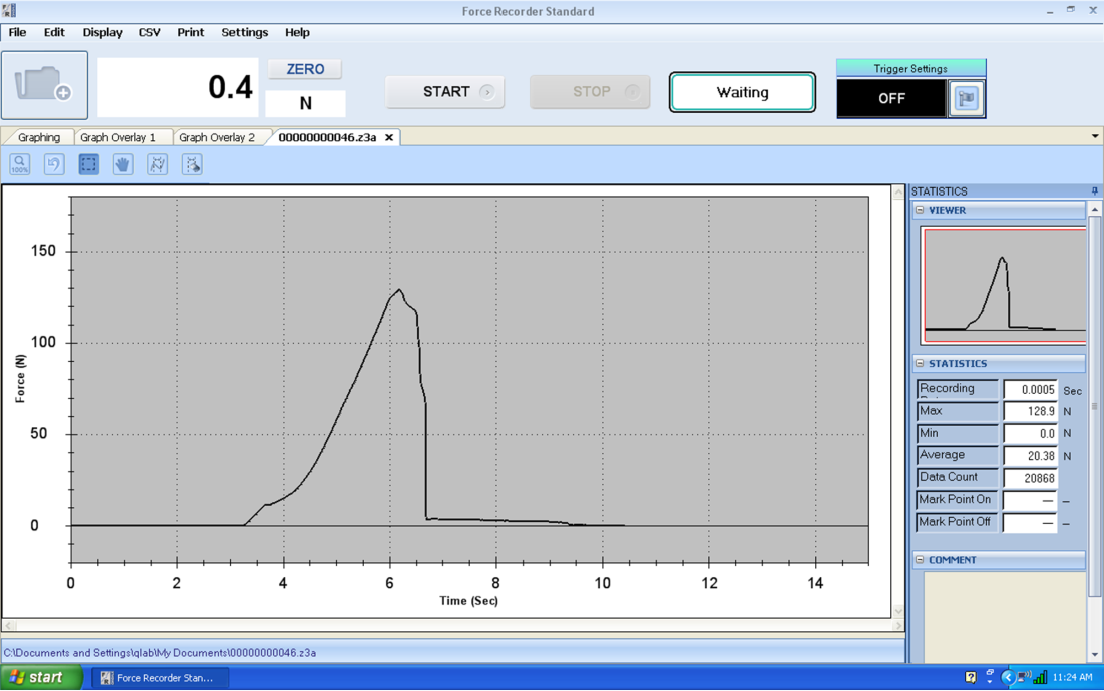

Sample Backside Spot Pressure Graph
